RHSChordConnection Class

EC3 Steel Connection Design Library
Hollow section joints between RHS chord members and CHS/RHS brace members according to 7.5 [prEN 1993-1-8 : 2003]
Inheritance Hierarchy
SystemObject
  SteelConnectionsEC3RHSChordConnection

Namespace:  SteelConnectionsEC3
Assembly:  SteelConnectionsEC3 (in SteelConnectionsEC3.dll) Version: 1.0.0.0 (1.0.0.0)
Syntax
public class RHSChordConnection

The RHSChordConnection type exposes the following members.

Constructors
  NameDescription
Public methodRHSChordConnection
Initializes a new instance of the RHSChordConnection class
Top
Methods
  NameDescription

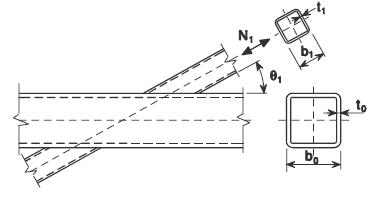

Public methodAxialResistance_Type1(CHS, Double, SteelGrade, Double)
Type 1 joint calculation

Variables definition:

Public methodAxialResistance_Type1(RHS, Double, SteelGrade, Double)
Type 1 joint calculation

Variables definition:

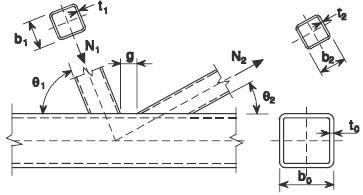

Public methodAxialResistance_Type2(CHS, Double, Double, SteelGrade, CHS, Double, Double, SteelGrade, Double)
Type 2 joint calculation

Variables definition:

Public methodAxialResistance_Type2(RHS, Double, Double, SteelGrade, RHS, Double, Double, SteelGrade, Double)
Type 2 joint calculation

Variables definition:

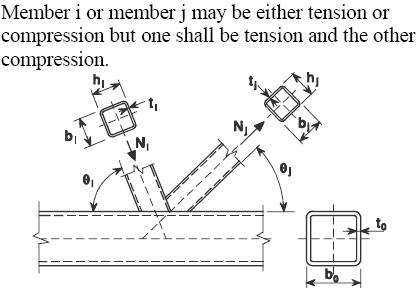

Public methodAxialResistance_Type3(CHS, Double, Double, SteelGrade, CHS, Double, SteelGrade, Double, Double)
Type 3 joint calculation

Variables definition:

Public methodAxialResistance_Type3(RHS, Double, Double, SteelGrade, RHS, Double, SteelGrade, Double, Double)
Type 3 joint calculation

Variables definition:

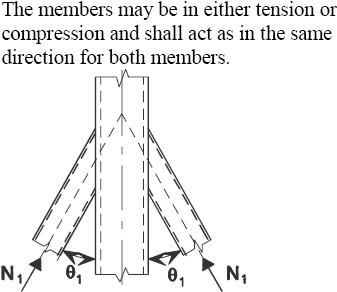

Public methodAxialResistance_Type4(CHS, Double, Double, SteelGrade)
Type 4 joint calculation

Variables definition:

Public methodAxialResistance_Type4(RHS, Double, Double, SteelGrade)
Type 4 joint calculation

Variables definition:

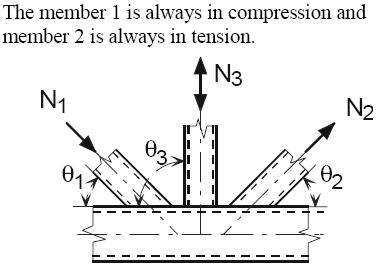

Public methodAxialResistance_Type5(CHS, Double, Double, SteelGrade, CHS, Double, Double, SteelGrade, CHS, Double, Double, SteelGrade, Double)
Type 5 joint calculation

Variables definition:

Public methodAxialResistance_Type5(RHS, Double, Double, SteelGrade, RHS, Double, Double, SteelGrade, RHS, Double, Double, SteelGrade, Double)
Type 5 joint calculation

Variables definition:

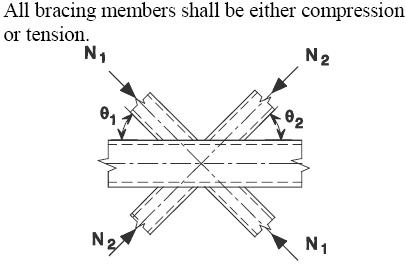

Public methodAxialResistance_Type6(CHS, Double, Double, SteelGrade, CHS, Double, Double, SteelGrade, Double)
Type 6 joint calculation

Variables definition:

Public methodAxialResistance_Type6(RHS, Double, Double, SteelGrade, RHS, Double, Double, SteelGrade, Double)
Type 6 joint calculation

Variables definition:

Public methodAxialResistance_Type7(CHS, Double, Double, CHS, Double, SteelGrade, Double, SteelGrade, Double)
Public methodAxialResistance_Type7(RHS, Double, Double, RHS, Double, SteelGrade, Double, SteelGrade, Double)
Top
Fields
  NameDescription
Public fieldChord
Chord object
Public fieldChordSteel
Chord steel grade
Public fieldGeometryRangeOfValidity_OK

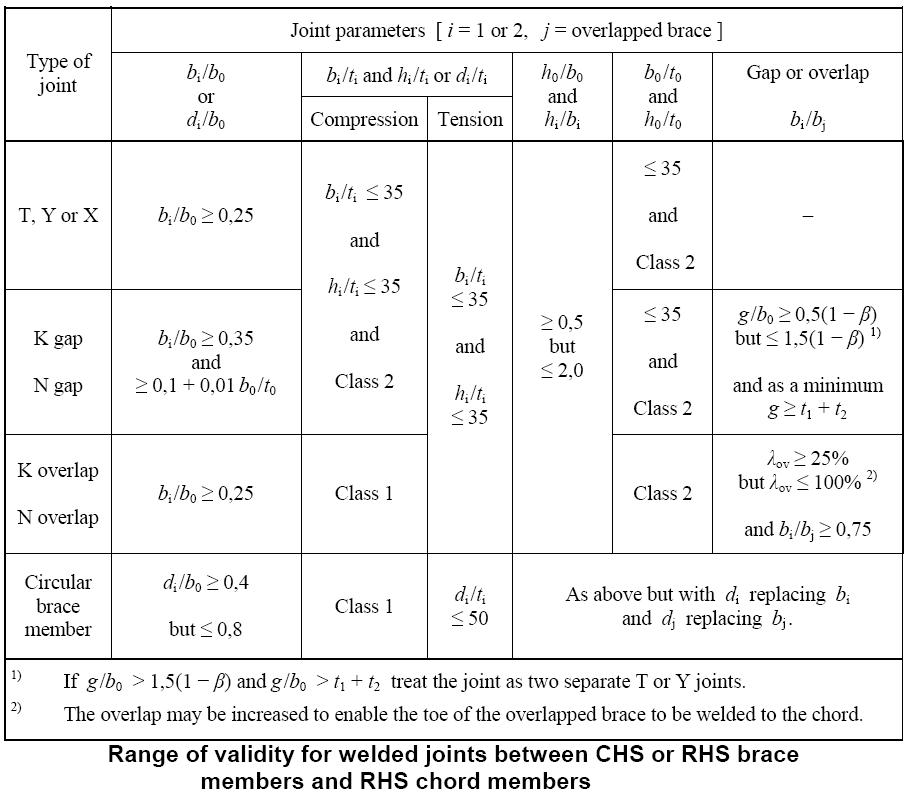

True, if the geometry is within the range of validity of table 7.8, otherwise false

Variables definition:

Public fieldMEd0
Chord bending moment
Public fieldNEd0
Chord axial force (compressive)
Public fieldVEd0
Chord shear force
Top
Remarks
All units in kN, mm unless other specified
