CHSChordConnection Class

EC3 Steel Connection Design Library
Hollow section joints between CHS members according to 7.4 [prEN 1993-1-8 : 2003]
Inheritance Hierarchy
SystemObject
  SteelConnectionsEC3CHSChordConnection

Namespace:  SteelConnectionsEC3
Assembly:  SteelConnectionsEC3 (in SteelConnectionsEC3.dll) Version: 1.0.0.0 (1.0.0.0)
Syntax
public class CHSChordConnection

The CHSChordConnection type exposes the following members.

Constructors
  NameDescription
Public methodCHSChordConnection
Initializes a new instance of the CHSChordConnection class
Top
Methods
  NameDescription
Public methodAxialResistance_Type1
Type 1 joint calculation

Variables definition:

Public methodAxialResistance_Type2
Type 2 joint calculation

Variables definition:

Public methodAxialResistance_Type3
Type 3 joint calculation

Variables definition:

Public methodAxialResistance_Type4
Type 4 joint calculation

Variables definition:

Public methodAxialResistance_Type5
Type 5 joint calculation

Variables definition:

Public methodAxialResistance_Type6
Type 6 joint calculation

Variables definition:

Public methodAxialResistance_Type7
Type 7 joint calculation

Variables definition:

Top
Fields
  NameDescription
Public fieldChord
Chord object
Public fieldChordSteel
Chord steel grade

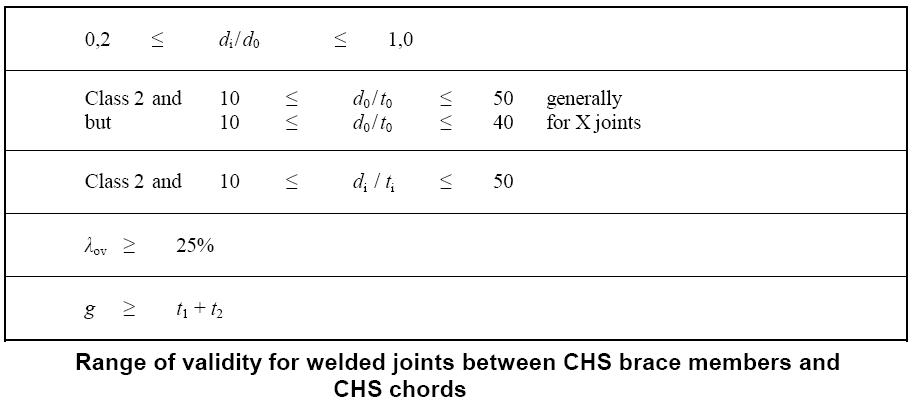

Public fieldGeometryRangeOfValidity_OK
True, if the geometry is within the range of validity of table 7.1, otherwise false

Variables definition:

Public fieldMEd0
Chord bending moment
Public fieldNEd0
Chord axial force (compressive)
Public fieldVEd0
Chord shear force
Top
Remarks
All units in kN, mm unless other specified
